OVERVIEW

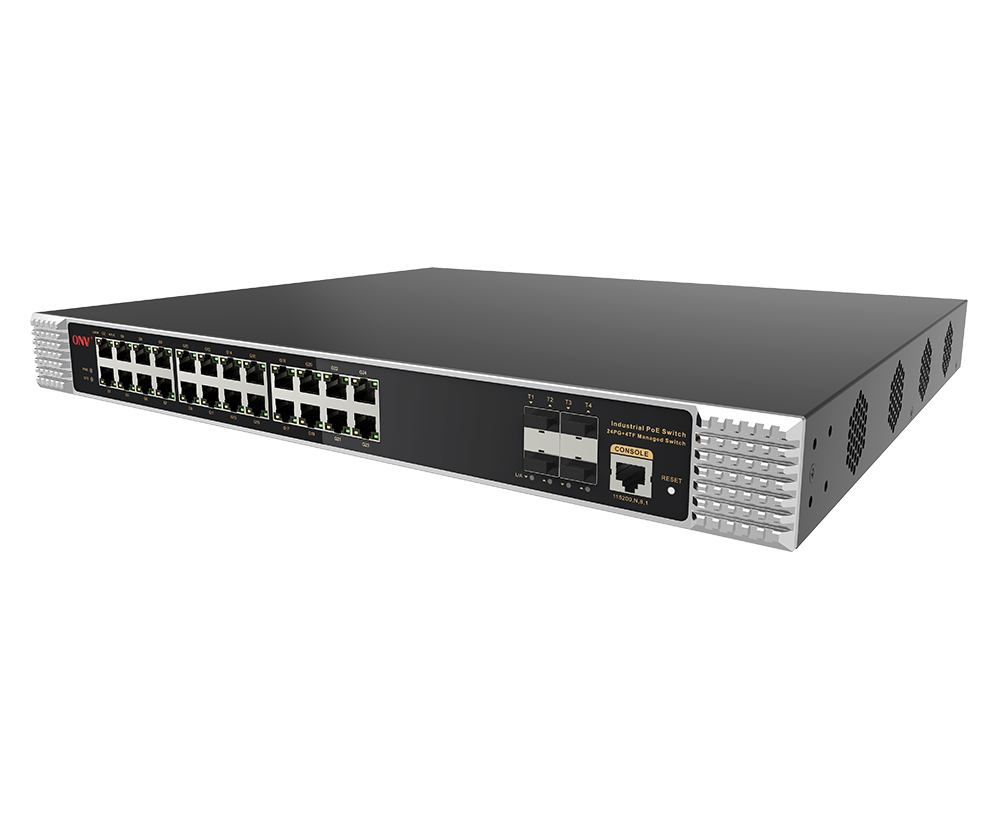

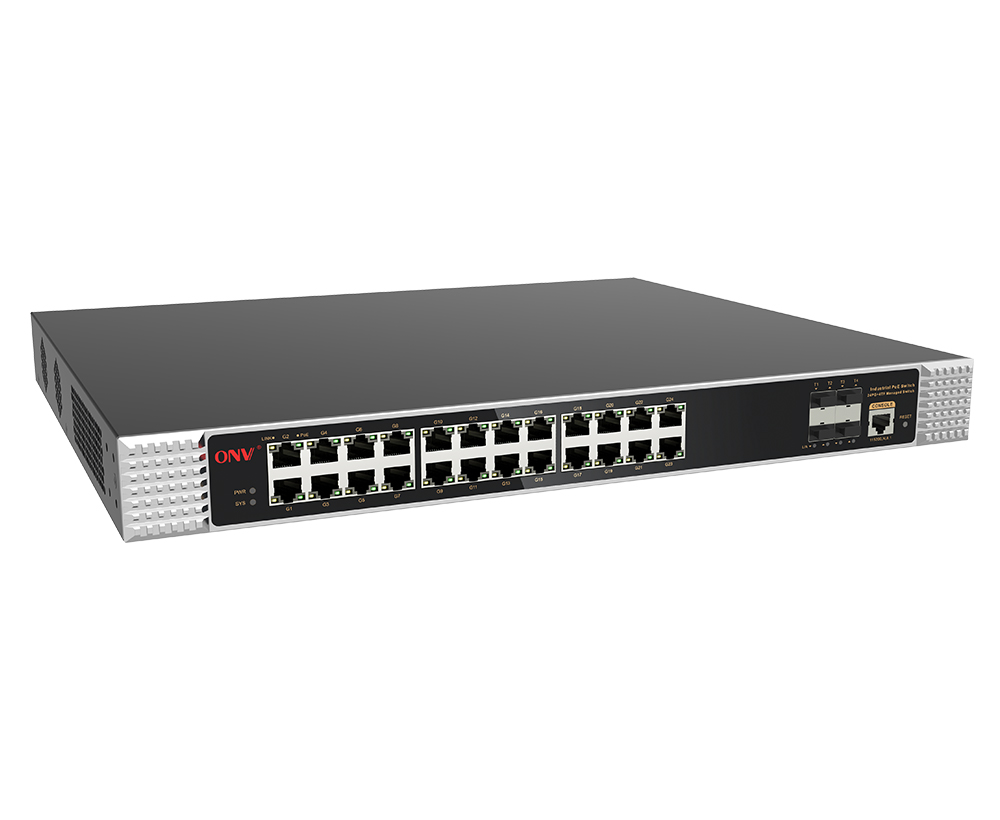

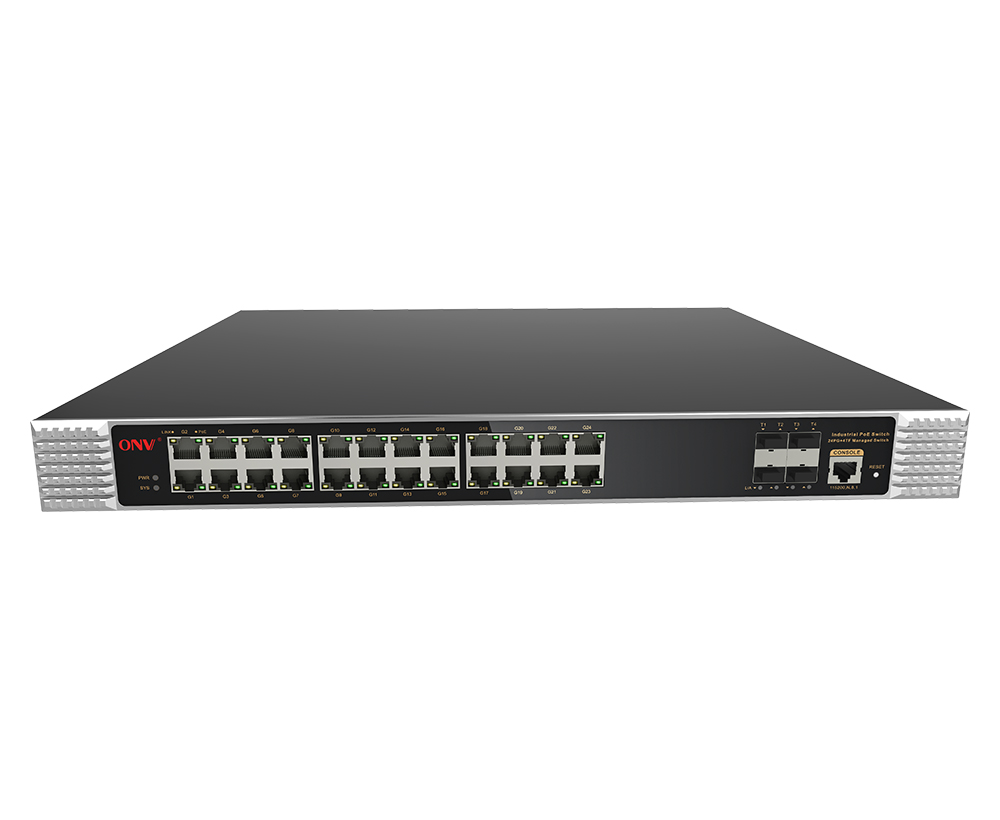

The ONV-IPS58028PFM is a 10G uplink managed industrial PoE switch independently developed by ONV. It has 24*10/100/1000Base-T adaptive RJ45 ports and 4*1/10G uplink SFP+ fiber ports. Port 1-24 can support IEEE 802.3 af/at PoE standard and single port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and industrial sensors through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, and industrial scenes such as shipping, metallurgy, and green energy construction forming a cost-effective, stable, and reliable communication network.
The ONV-IPS58028PFM has L3 network management function, supports IPV4/ IPV6 management, dynamic/ static routing forwarding, complete security protection mechanism, perfect ACL/ QoS policy, and rich VLAN functions for easy management and maintenance. It supports multiple network redundancy protocols STP/ RSTP/ MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When the one-way network fails, the communication can be quickly restored to ensure the uninterrupted communication of important applications. According to application needs, PoE power supply management, port management, routing address management, port flow control, VLAN division, IGMP, security policy, and other application service configurations are performed through Web, CLI, SNMP, Telnet, and other network management methods.
FEATURE
Gigabit access, uplink 1/10G SFP+ fiber port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support Gigabit RJ45 port and uplink 1/10G SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
◇ PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

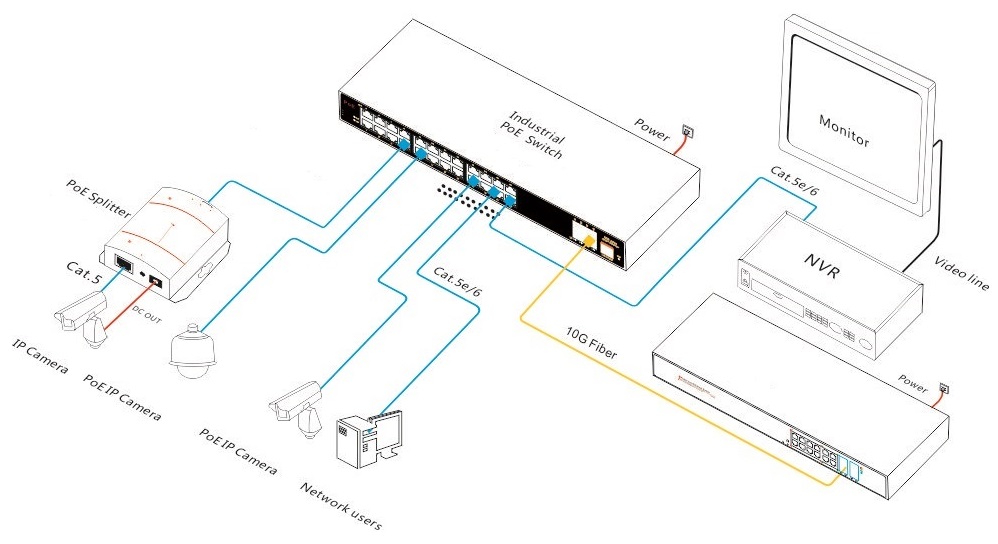

◇ 24*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Security
◇ Port isolation and storm control.
◇ IP+MAC+port+VLAN quadruple flexible combination binding function.
◇ 802.1X authentication provides authentication functions for LAN computers and controls the authorization status of controlled ports according to the authentication results.
Strong business processing capability
◇ Support ERPS ring network and STP/ RSTP/ MSTP to eliminate layer 2 loops and realize link backup.
◇ Support IEEE802.1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.
◇ Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
◇ Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
◇ Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
◇ Support IGMP SnoopingV1/V2/V3 multicast protocol IGMP to meet the multi-terminal high-definition video surveillance and video conference access requirements.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, and PoE.
◇ Low power consumption, with fan, galvanized steel metal housing, and excellent heat dissipation to ensure stable operation of the switch.
Easy O&M management
◇ Support NMS platform cluster management.
◇ Support CPU monitoring, memory monitoring, Ping detection, and cable length detection.
◇ Support RMON, system log, and port traffic statistics to facilitate network optimization and transformation.
◇ Support HTTPS, SSLV3, SSHV1/V2, and other encryption methods, making management more secure.
◇ Support LLDP to facilitate the network management system to query and judge the communication status of the link.
◇ Support Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3) and other diversified management and maintenance.

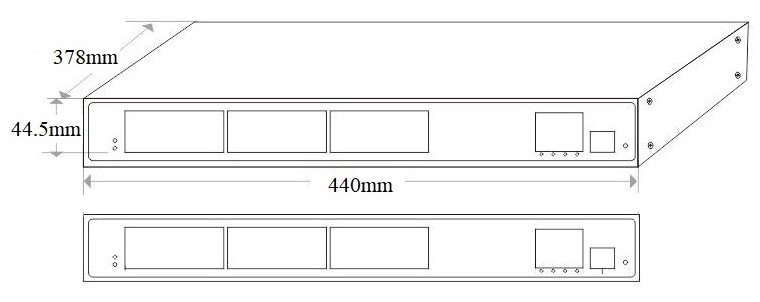

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV-IPS58028PFM |
L3 managed industrial PoE switch with 24*10/100/1000M RJ45 ports and 4*1/10G uplink SFP+ fiber ports. Port 1-24 can support IEEE 802.3 af/at PoE standard. It built-in redundant dual power supply and standard 1U/19” cabinet installation. |
2*400W |
|
ONV-IPS58028PFM-at |
2*600W |
|
|
Note: The optical module is not included and needs to be purchased separately. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
28-port 10G uplink managed industrial PoE switch |
1 |
Set |
|
|
RJ45-DB9 Adapter Cable |
1 |
PC |
|
|
AC Power Cable |
1 |
PC |
|
|
Mounting Kits (Hanging Ear) |
1 |
Set |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module |
2630-G |
Industrial SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, supports DDM function and hot plugging. |
PC |
|
2632-G |
Industrial SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. |
PC |
|
|
2612-T-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. |
PC |
|
|
2613-R-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. |
PC |
|
|
2612-T-G-SC |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface, supports DDM function and hot plugging. |
PC |
|
|
2613-R-G-SC |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface, supports DDM function and hot plugging. |
PC |
|
|
10G Optical Module |
6630-G |
Industrial SFP+ optical module, 10G multi-mode dual fiber 850nm, transmission distance: 300m, LC interface, supports DDM function and hot plugging. |
PC |
|
7832-G |
Industrial SFP+ optical module, 10G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. |
PC |
|
|
7832-33-G |
Industrial SFP+ optical module, 10G single-mode single fiber TX1330nm/ RX1270nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. |
PC |
|
|
7832-27-G |
Industrial SFP+ optical module, 10G single-mode single fiber TX1270nm/ RX1330nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-IPS58036PFM |
L3 managed industrial PoE switch with 24*10/100/1000M RJ45 ports and 8*100/1000M SFP fiber combo ports and 4*1/10G uplink SFP+ fiber ports. Port 1-24 can support IEEE 802.3 af/at PoE standard. It can support 2AC+DC redundant power supply input and standard 1U/19” cabinet installation. |
|
ONV-IPS58052PFM |
L3 managed industrial PoE switch with 48*10/100/1000M RJ45 ports and 4*1/10G uplink SFP+ fiber ports. Port 1-48 can support IEEE 802.3 af/at PoE standard. It can support 2AC+DC redundant power supply input and standard 1U/19” cabinet installation. |
TECHNICAL SPECIFICATION
Model
ONV-IPS58028PFM
ONV-IPS58028PFM-at
Interface Characteristics
Fixed Port
2*AC100-240V input ports
Power failure alarm switch port (FAULT)
1*Console RS232 port (115200, N, 8,1)
4*1/10G uplink SFP+ fiber ports (Data)
24*10/100/1000Base-T PoE ports (Data/ Power)
2*DC48-57V input ports (support reverse polarity protection)
Ethernet Port
Port 1-24 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e/6 or later UTP (≤100 meters)
Optical Fiber Port
1/10G SFP+ optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Fiber Port Expansion
Turbo overclocking 2.5G optical module expansion and ring network
Optical Cable/ Distance
Multi-mode: 850nm/ 0-550m, 850nm/ 0-300m(10G), Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Management Type
L3
Network Protocol
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3ae 10GBase-LR/SR, IEEE 802.3x
Forwarding Mode
Store and Forward (Full wire speed)
Switching Capacity
128Gbps (non-blocking)
Forwarding Rate@64byte
95.23Mpps
CPU
800M
DRAM
1G
FLASH
128M
MAC
16K
Buffer Memory
12M
Jumbo Frame
12K
LED Indicator
Power: PWR(Yellow), System: SYS (Yellow), Network: Link (Yellow), PoE: PoE (Green), Fiber port: L/A (Green)
Reset Switch
Yes, press and hold the switch for 10 seconds and release it to restore the factory settings
PoE& Power Supply
PoE Port
Port 1-24
PoE Management
PoE working status display, Port PoE on/off, af/at power distribution
Power Supply Pin
1/2 (+) 3/6(-)
Max Power Per Port
30W, IEEE 802.3 af/at
Total PWR/ Input Voltage
2*400W/ (AC100-240V)
2*600W /(AC100-240V)
Power Consumption
Standby<20W, full Load<380W
Standby<22W, full Load<600W
Power Supply
Built-in power supply, AC100~240V 50-60Hz, 5.0A
Built-in power supply, AC100~240V 50-60Hz, 6.6A
Power Input Port
Alarm switch port, 2*AC power input ports, 2*DC48-57V input ports
Dual input power port design: AC power supply priority to support anti-reverse connection protection, and automatically switches to DC connection when power fails.
Physical Parameter
Operation Temp/ Humidity
-40°C~+75°C, 5%~90% RH non condensing
Storage Temp/ Humidity
-40°C~+85°C, 5%~95% RH non condensing
Dimension (L*W*H)
440*378*44.5mm
Net /Gross Weight
5.4kg/ 6.2kg
6.2kg/ 7.0kg
Installation
Desktop, 1U/19” cabinet
Certification& Warranty
Lightning Protection
IEC61000-4-3 (RS): 10V/m (80-1000MHz)
FCC Part 15/CISPR22 (EN55022): Class A
IEC61000-6-2 (Common Industrial Standard)
IEC61000-4-9 (Pulsed magnet field): 1000A/m
IEC61000-4-10 (Damped oscillation): 30A/m 1MHz
IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV
Protection level: IP30, Lightning protection: 6KV 8/20us
IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV
IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s
IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)
IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s
IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties
IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification
CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty
5 years, lifelong maintenance.
Network Management Feature
Interface
Port real-time flow management (Flow Interval)
Broadcast storm suppression based on port rate
Optical port SFP module DDMI real-time digital diagnosis
Port EEE Green Ethernet Energy-Saving configuration and status view
IEEE 802.3x flow control (Full duplex), Port exception protection mechanism
Limit the rate of incoming and outgoing packet traffic, mini granularity is16Kbps and max is 1Gbps
L3 Feature
IPV4/ IPV6 VRRP, max is 255 group
IPV4/ IPV6 VLANIF port, max128 entries
Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6
IPV4/ IPV6 static route/ default route, max128 entries
IPV4 dynamic routing, RIPv1/v2, OSPFv2, routing 4000 entries
NG protocol, max 1000 entries, ARP protocol, max 1000 entries
L3 network management function, IPV4/ IPV6 dual-stack management
IPV6 dynamic routing OSPFv3, RIPng, IPV6 management, routing 1000 entries
L3 routing and forwarding, support communication between different network segments and different VLAN
VLAN
VLAN based on MAC, VLAN based on the protocol
GVRP VLAN protocol, Port configuration of Access, Trunk, Hybrid
(4K) VLAN based on port, IEEE 802.1q, Voice VLAN, QinQ configuration
Port Aggregation
LACP dynamic aggregation, Static aggregation, Max 14 aggregation groups and max 8 ports per group.
Spanning Tree
STP BPDU Guard, BPDU filtering and BPDU forwarding
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
ERPS Ring Network
ERPS, Recovery time less than 20ms, ITU-T G.8032
Multicast
MLD Snooping, Multicast VLAN
User quick log out, MVR (Multicast VLAN Registration)
IGMP Snooping v1/v2/v3 and 1024 multicast groups at most
Mirroring
Bidirectional traffic mirroring for basic ports
Supports 1-to-multiple mirroring, supports up to 4 port sessions
QoS
Flow-based rate limiting, Flow-based redirection
Queue scheduling algorithm (SP, WRR, SP+WRR)
Flow-based packet filtering, 8*Output queues of each port
802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority mark/ remark
ACL
ACL distribution based on port and VLAN
L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.
Security
Port based IEEE802.1X authentication
SSL guarantees data transmission security
Quad binding function of IP+MAC+VLAN+ports
MAC address learning limit, MAC address black hole
IP Source Guard function, AAA& RADIUS certification
Anti DoS attack, Port broadcast message suppression
Hierarchical user management and password protection
SSH 2.0 provides a secure encrypted channel for user login
Host data backup mechanism, ARP intrusion detection function
Port isolation, IP source address protection, ARP message speed limit function
DHCP
DHCP Client, DHCP Snooping, DHCP Server
Management
NTP clock, Viewing CPU Instant Utilization Status
FTP, TFTP file upload and download management
One click restore, Web network management (https)
Cable status check, Ping detection, System work log
SNMP V1/V2/V3, Link Layer Discovery Protocol(LLDP)
ONV-NMS platform cluster management (LLDP+SNMP)
Console/ Telnet/ CLI/ SSH command line configuration
System
Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable
TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable
