OVERVIEW

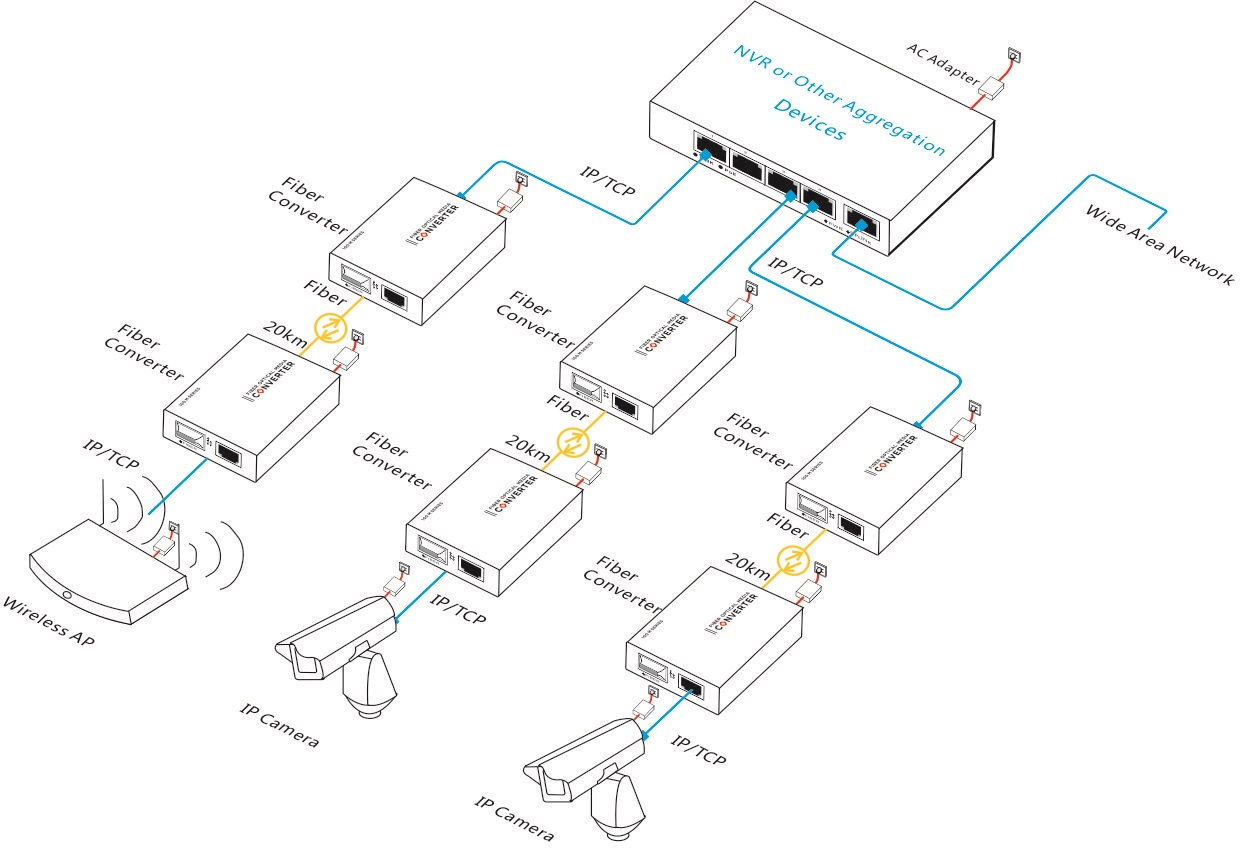

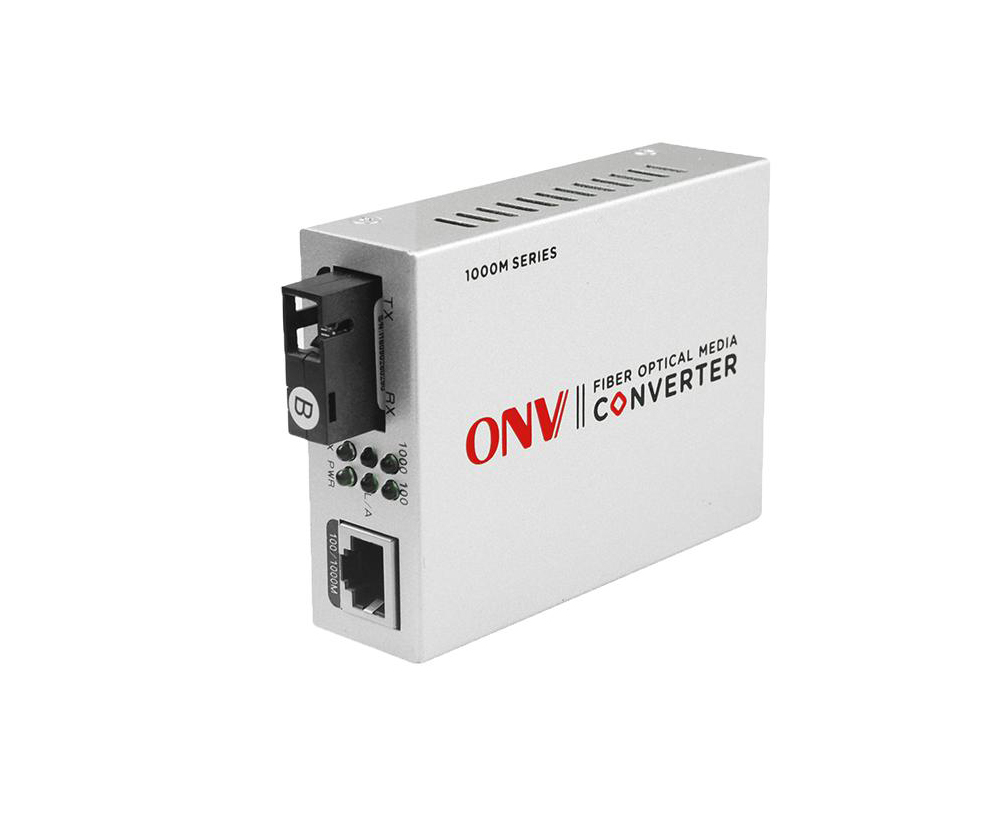

The ONV1110-SCX-K is gigabit single-mode dual fiber media converter independently developed by ONV. It has 1*10/100/1000Base-T RJ45 port and 1*1000M uplink SC fiber port. User can select different optical modules, such as multi-mode dual fiber, single-mode dual fiber, and single-mode single fiber. The media converter adopts the enterprise-class Taiwan Realtek carrier-grade chip solution, which has stable performance, good quality and high cost performance. It is suitable for optical fiber access application scenarios such as security monitoring, wireless coverage, intelligent transportation, and safe cities to form a cost-effective and stable communication network. Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Gigabit photoelectric Ethernet conversion transmission
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support gigabit RJ45 port and gigabit SC fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Easy to use and simple to maintain
◇ Support full-duplex/half-duplex working mode with auto-negotiation function.
◇ Automatic identification of twisted pair MDI/MDI-X cross lines and parallel lines.
◇ LED working status indication for network diagnosis and fault checking, reducing maintenance workload.
◇ Plug and play, no configuration required, centralized power supply and centralized connection management through 2U-14 slot rack.
◇ Compatible with IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-LX/SX/CX network protocol, 10/100/1000M R45 port rate auto-negotiation.
Innovative Features
◇ LFP link fault alarm function: In the event of a fault, the fault status of the opposite end can be displayed through the indicator light, which can quickly determine the location of the fault point and reduce maintenance costs.
◇ One-button switching between store-and-forward mode and pass-through-forward mode: the lower-end rate of pass-through-forward mode is forced to Gigabit to realize super-long-screen data display on the LED display).
Stable and reliable
◇ CCC, CE, FCC, and RoHS.
◇ Low power consumption, no fan, galvanized steel casing.
◇ Comply with telecommunication network access requirements, and have the telecommunications equipment network access license of the MIIT.

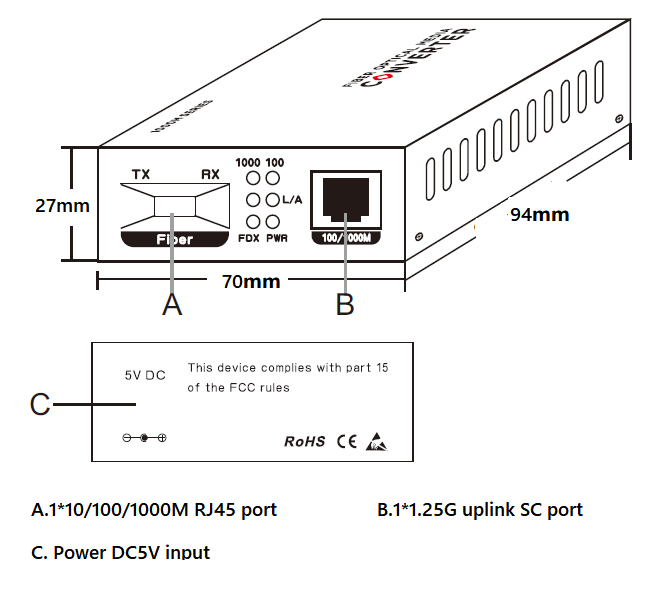

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
|
ONV1110-MCX-K |
Gigabit multi-mode dual fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SC fiber port. Total power is 4W. 850nm/ 0-550m. Support one-button switch LFP enable store-and-forward / pass-through forwarding. External power supply. |
|
ONV1110-SCX-K |
Gigabit single-mode dual fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SC fiber port. Total power is 4W. 1310nm/0-20km. Support one-button switch LFP enable store-and-forward / pass-through forwarding. External power supply. |
|
ONV1110S-SCX-K-A |
Gigabit single-mode single fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SC fiber port. Total power is 4W. 1310nm/ 0-20km. Support one-button switch LFP enable store-and-forward / pass-through forwarding. External power supply. |
|
ONV1110S-SCX-K-B |
Gigabit single-mode single fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SC fiber port. Total power is 4W. 1550nm/ 0-20km. Support one-button switch LFP enable store-and-forward / pass-through forwarding. External power supply. |
|
ONV1110-MLX-F |
Gigabit multi-mode dual fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SFP fiber port. Total power is 4W. 850nm/ 0-550m. External power supply. |
|
ONV1110-SLX-F |
Gigabit single-mode dual fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SFP fiber port. Total power is 4W. 1310nm/ 0-20km. External power supply. |
|
ONV1110S-SLX-F-A |
Gigabit single-mode single fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SFP fiber port. Total power is 4W. 1310nm/ 0-20km. External power supply. |
|
ONV1110S-SLX-F-B |
Gigabit single-mode single fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SFP fiber port. Total power is 4W. 1550nm/ 0-20km. External power supply. |
|
ONV1110-MCX-O |
Gigabit multi-mode dual fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SC fiber port. Total power is 4W. 850nm/ 0-550m. External power supply. |
|
ONV1110-SCX-O |
Gigabit single-mode dual fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SC fiber port. Total power is 4W, 1310nm wavelength, default transmission distance 0-20km. External power supply. |
|
ONV1110S-SCX-O-A |
Gigabit single-mode single fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SC fiber port. Total power is 4W. 1310nm/ 0-20km. External power supply. |
|
ONV1110S-SCX-O-B |
Gigabit single-mode single fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SC fiber port. Total power is 4W. 1550nm/ 0-20km. External power supply. |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
2-port gigabit single-mode dual fiber media converter |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV1110-MCX-K |
ONV1110-SCX-K |
ONV1110S-SCX-K-A/B |
|
Interface Characteristics |
|||
|
Interface |
1*1000M uplink SC fiber port (Data) 1*10/100/1000Base-T RJ45 port (Data) |
||
|
One-button Function Switch |
Dis LFP/En LFP: (Close LFP/open LFP) Pass-through-forward/Store-and-forward |
||
|
Ethernet Port |
10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
||
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
||
|
Optical Fiber Port |
1.25Gbps, Multi-mode dual fiber SC port |
1.25Gbps, Single-mode dual fiber SC port |
1.25Gbps, Single-mode single fiber SC port |
|
Optical Cable/ Distance |
Multi-mode: 850nm / 0-550m |
Single-mode: 1310nm / 0-40km, 1550nm/ 0-120km. |
|
|
Chip Parameter |
|||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3z 1000Base-LX/SX/CX, IEEE802.3x |
||
|
Forwarding Mode |
Default store-and-forward, optional pass-through-forward |
||
|
Switching Capacity |
2.0Gbps (Non-blocking) |
||
|
Forwarding Rate@64byte |
3.0Mpps |
||
|
MAC |
2K |
||
|
Buffer Memory |
1M |
||
|
LED Indicator |
Power: PWR (Green) On/off, Speed: 100/1000 (Green) On/off Data: L/A (Green) On/off/Blink, Single/ Duplex: FDX (Green) On/off |
||
|
Power Supply |
|||
|
Total PWR / Input Voltage |
3.5W/ (5VDC) |
||
|
Power Consumption |
Standby<1W, Full Load<4W |
||
|
Physical Parameter |
|||
|
Operation TEMP / Humidity |
-20°C to +55°C, 5%~90% RH Non condensing |
||
|
Storage TEMP / Humidity |
-40°C to +85°C, 5%~95% RH Non condensing |
||
|
Dimension (L*W*H) |
94*70*27mm |
||
|
Net /Gross Weight |
<0.3kg / <0.5kg |
||
|
Installation |
Desktop, 2U-14 Rack-mounted |
||
|
Certification & Warranty |
|||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
||
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
||
|
Warranty |
1 year, lifelong maintenance. |
||
