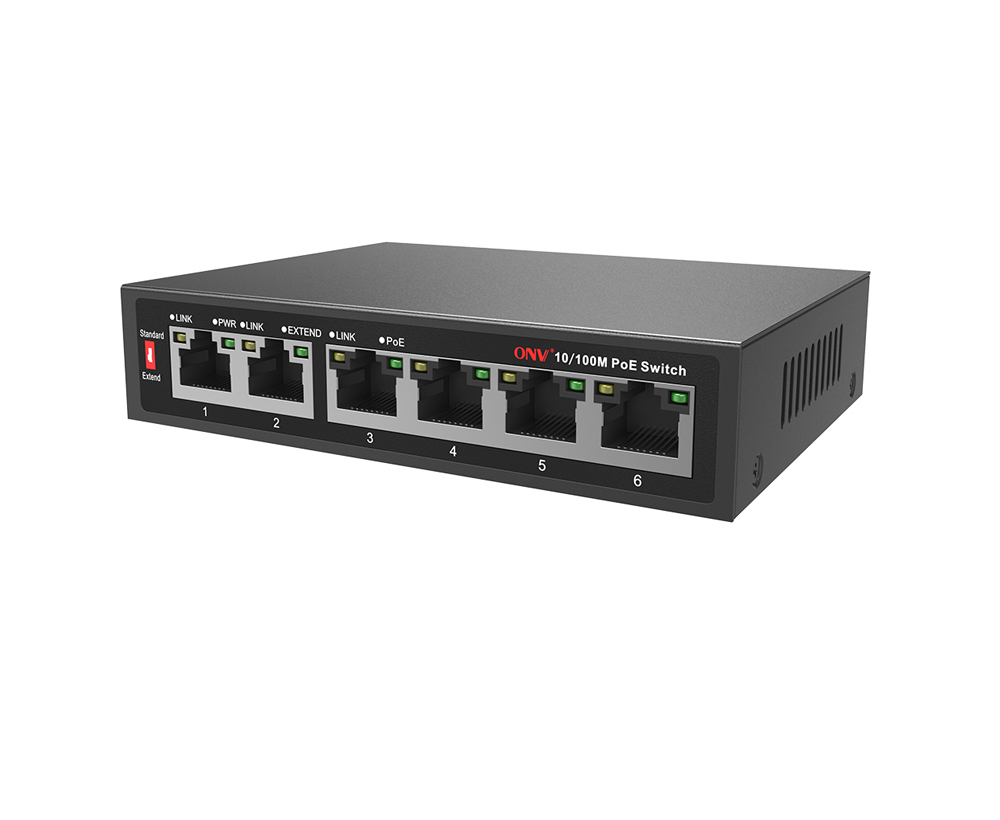

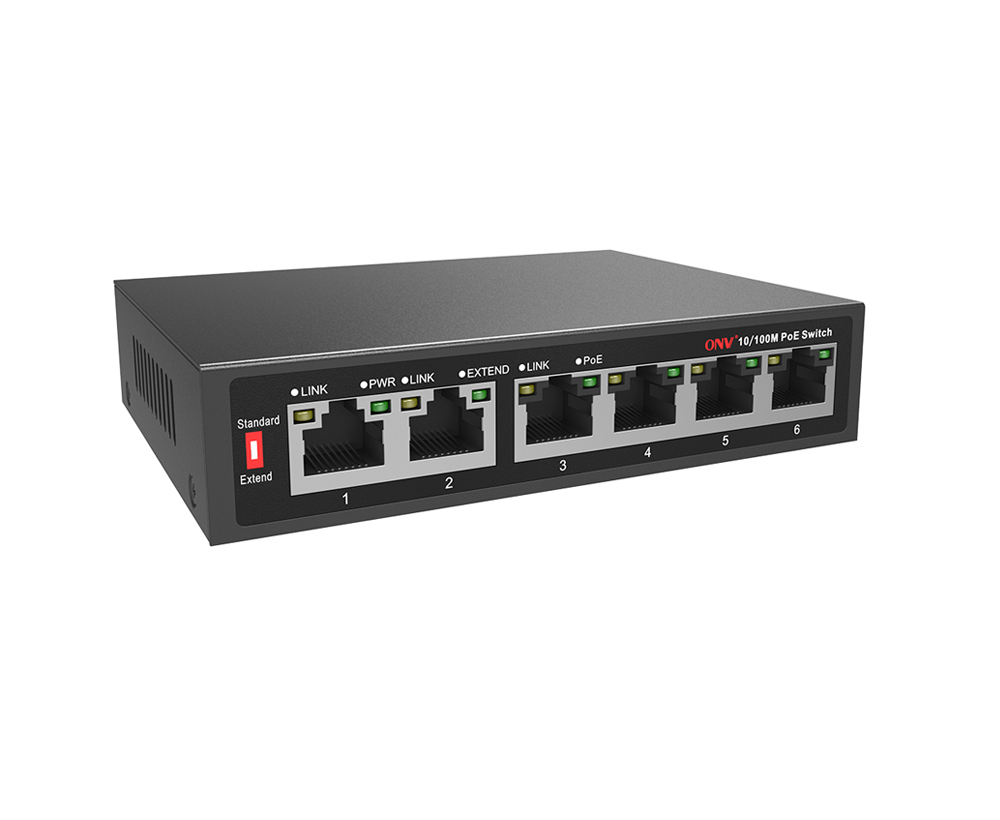

OVERVIEW
The ONV-POE31064PL is gigabit uplink PoE switch independently developed by ONV. It has 4*10/100M RJ45 ports and 2*10/100M uplink RJ45 ports. Port 3-6 can support IEEE 802.3 af/at PoE standard and single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and visual intelligent building intercom through a network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises. Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
10/100M access, uplink dual RJ45 port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ 6*10/100Base-TX RJ45 port, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.
Smart PoE power supply
◇ 4*10/100Base-TX RJ45 ports support PoE power supply to meet the PoE power supply needs of various scenarios in the security field.
◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
Innovative feature
◇ Long-distance mode (Extend): When enabled, the rate of ports 3-6 is reduced to 10M/250 meters.
◇ Video surveillance mode: Enabled together with the long-distance mode, ports 3-6 are isolated from each other but are connected to ports 1-2, which can prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.

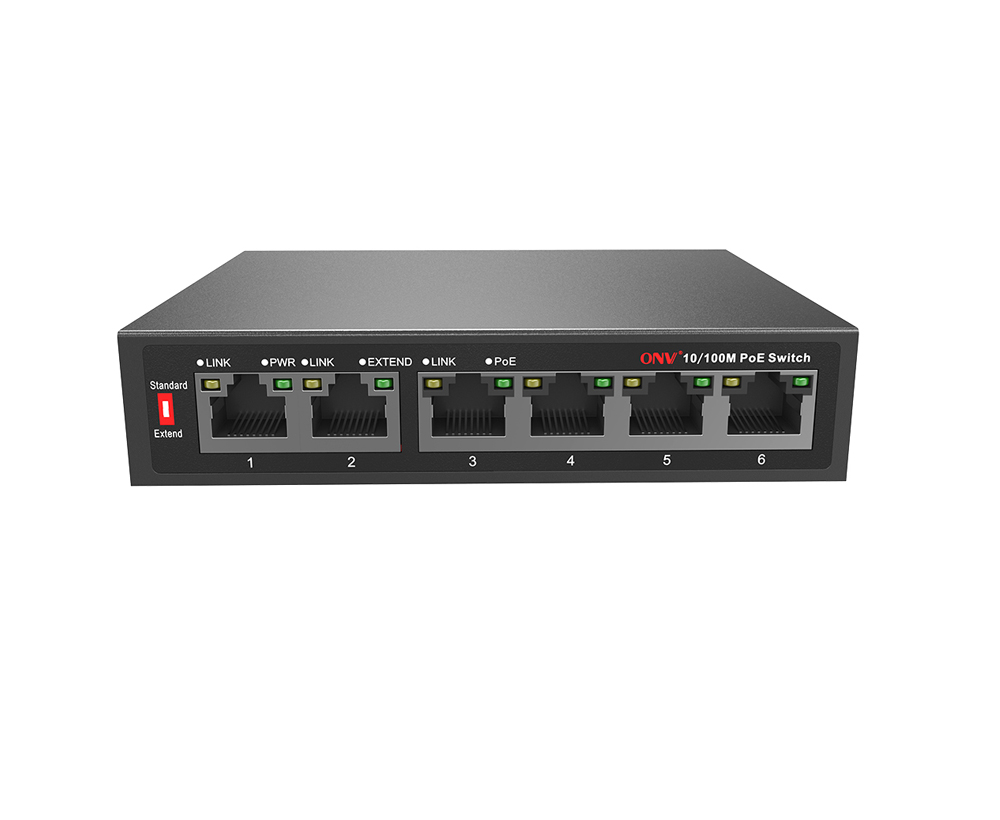

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
◇ Low power consumption, no fan, galvanized steel metal shell, and excellent heat dissipation to ensure the stable operation of the switch.

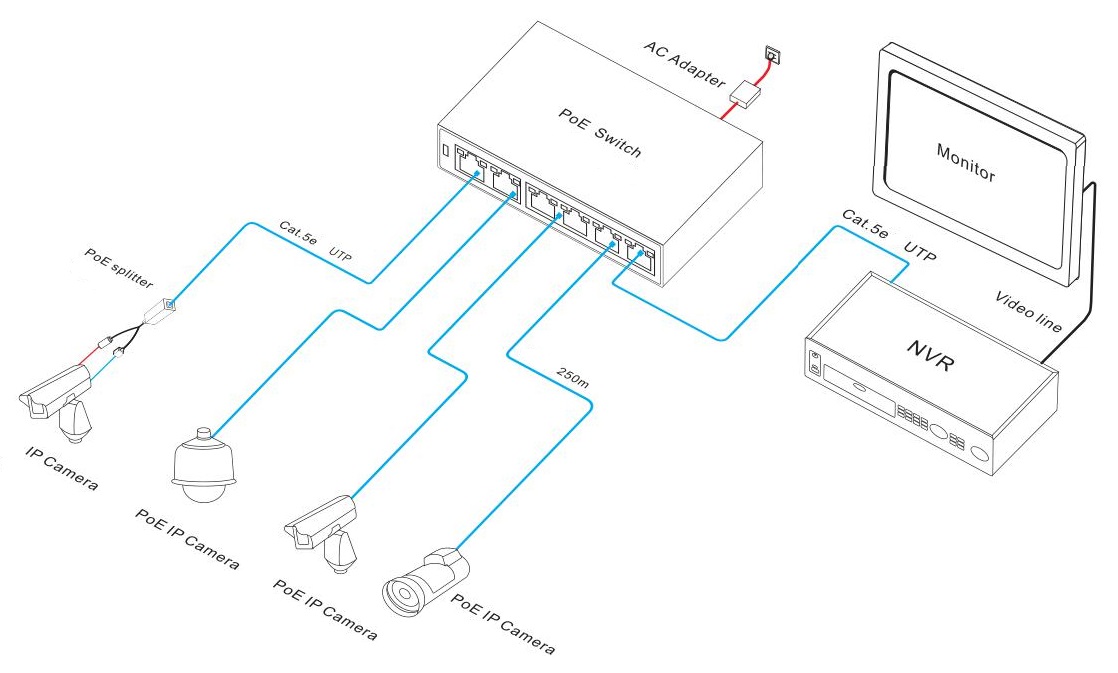

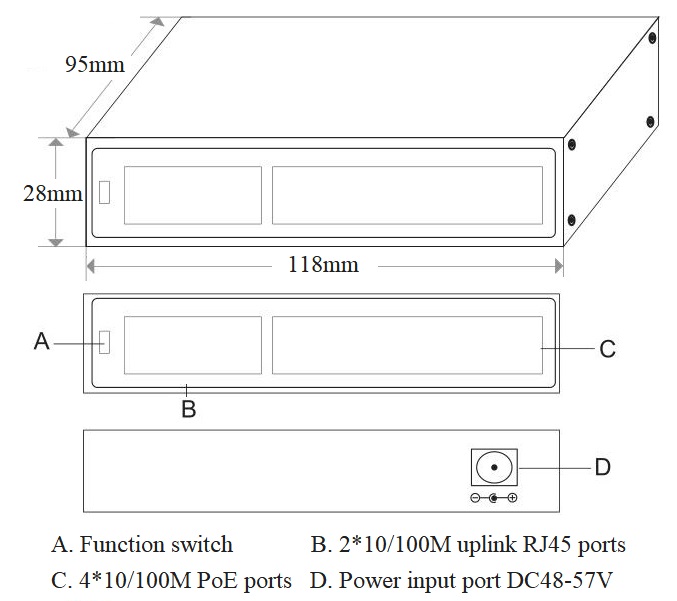

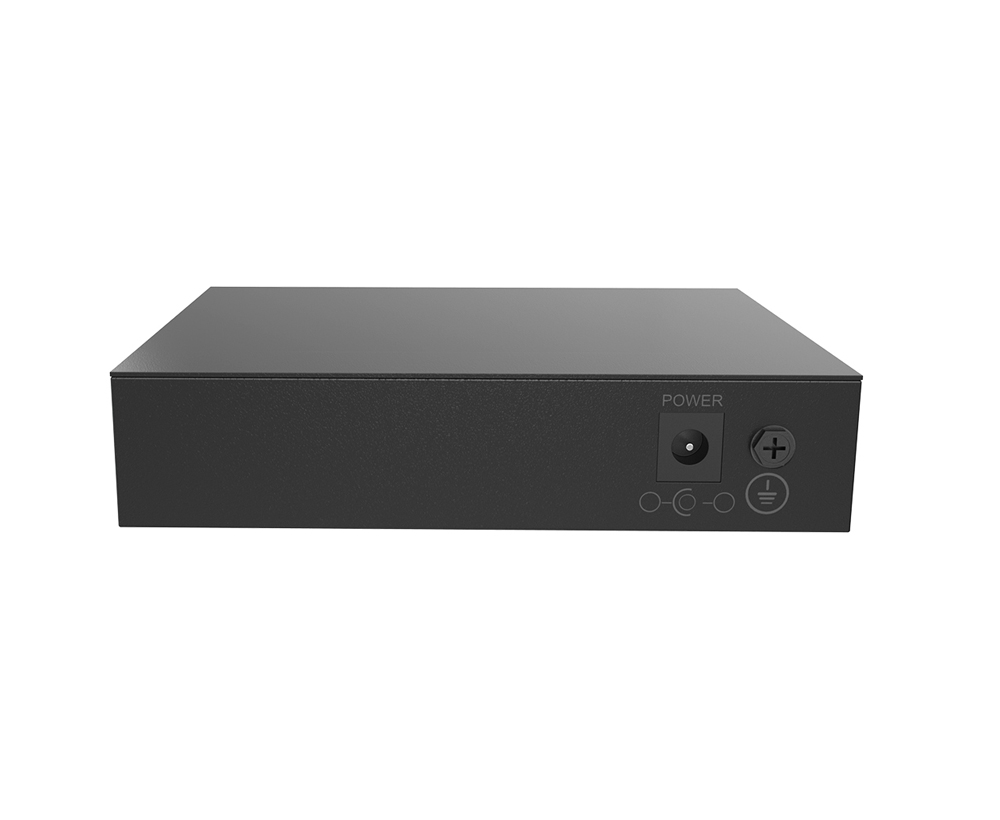

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
External Power Adapter |
|
ONV-POE31064PL |
Unmanaged PoE switch with 4*10/100M RJ45 ports and 2*10/100M uplink RJ45 ports. Port 3-6 can support IEEE 802.3 af/at PoE standard. When the function switch (Extend) is enabled, port 3-6 can support VLAN isolation and 10M/250 meters transmission. External power adapter. |
65W |
|
ONV-POE31064PL-at |
110W |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
6-port 10/100M PoE switch |
1 |
SET |
|
|
Power Supply Kit (AC Power Line + Power Adapter) |
1 |
SET |
|
|
Mounting Kit (Hanging Ear) |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-POE31064PL |
ONV-POE31064PL-at |
|
Interface Characteristics |
||
|
Fixed Port |
4*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX uplink RJ45 ports (Data) |
|
|
Ethernet Port |
Port 1-6 can support 10/100Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE: Cat3,4,5 UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) |
|
|
Function switch |
1*(Extender+CCTV) |
|
|
Note: When the switch status changes, the PoE switch must be restarted for the switch function to take effect. |
||
|
Chip Parameter |
||
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x |
|
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
|
Switching Capacity |
1.6Gbps (non-blocking) |
|
|
Forwarding Rate @64byte |
0.89Mpps |
|
|
MAC |
1K |
|
|
Buffer Memory |
768K |
|
|
LED Indicator |
Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), Functional switch: EXTEND (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 3-6 |
|
|
Power Supply Pin |
1/2(+) 3/6 (-) |
|
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
|
Total PWR / Input Voltage |
65W/ DC52V |
110W/ DC52V |
|
Power Consumption |
Standby<4W, Full load<65W |
Standby<5W, Full load<110W |
|
Power Supply |
External power adaptrt, AC100~240V 50-60Hz, 1.0A |
External power adapter, AC100~240V 50-60Hz, 2.2A |
|
Physical Parameter |
||
|
Operation TEMP/ Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP/ Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
118*95*28mm |
|
|
Net /Gross Weight |
0.3kg/ 0.7kg |
0.3kg/ 0.8kg |
|
Installation |
Desktop, wall mount |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
3 years, lifelong maintenance. |
|
