OVERVIEW

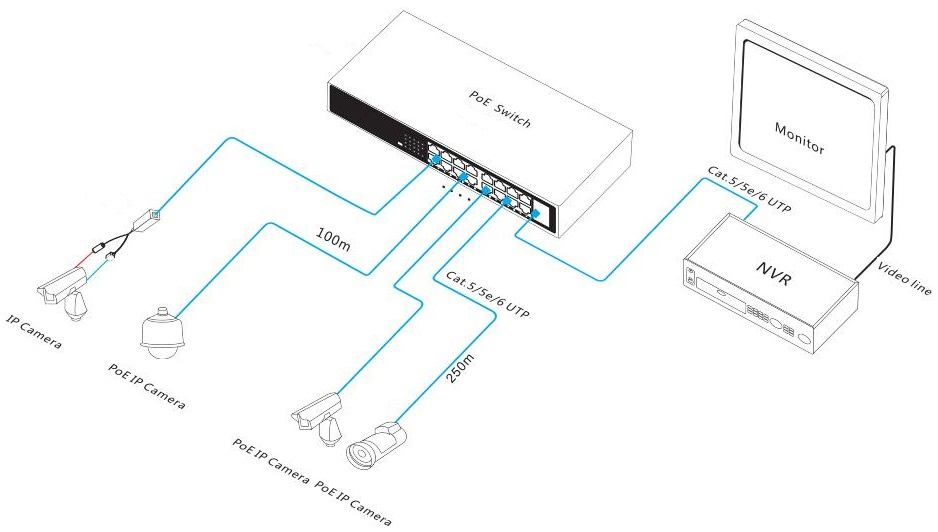

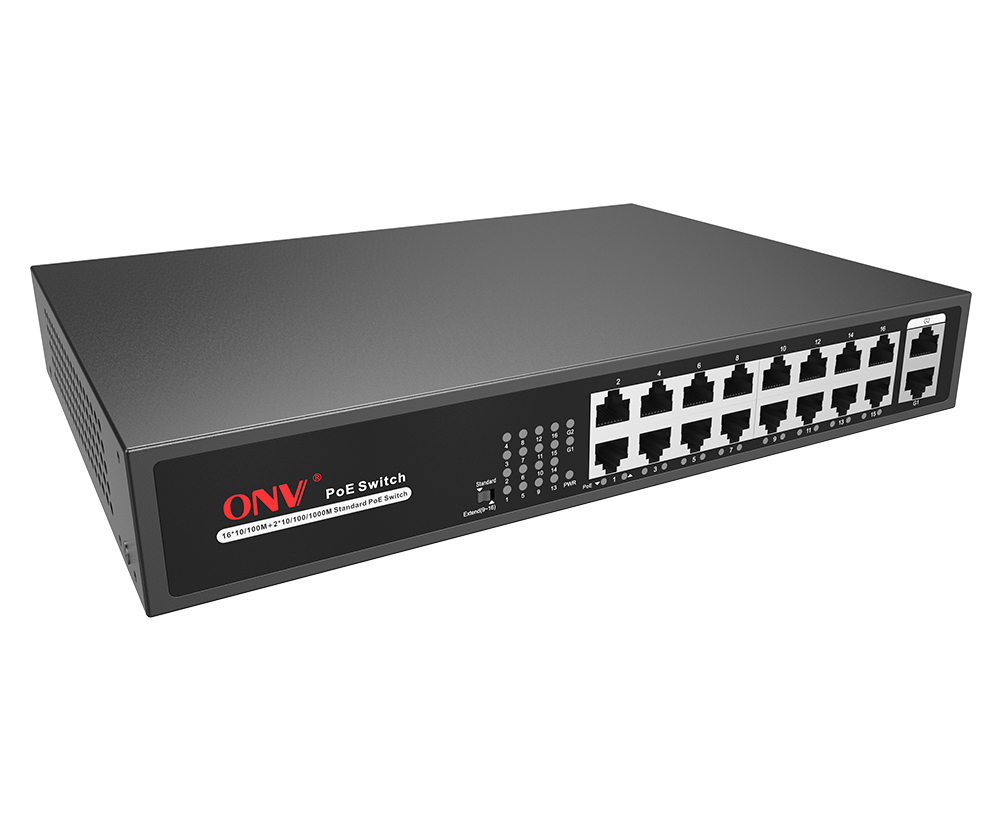

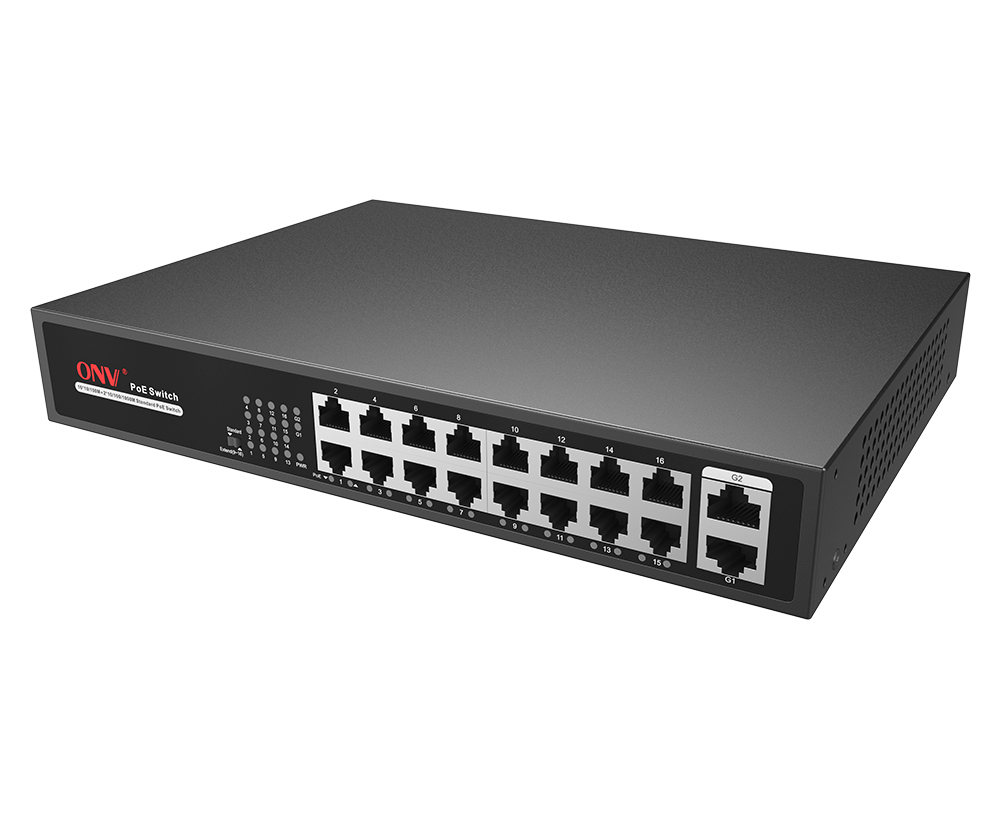

The ONV-H1016PL is a 10/100Mbps PoE switch independently developed by ONV. It has 16*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-16 can support IEEE802.3af/at PoE standard. Single-port PoE power up to 30W and the maximum POE output power less than 250W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economy efficient network.
Unmanaged mode, plug, and play, no configuration, easy to use.
FEATURE
10/100M access, Gigabit uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Provides 16*10/100M PoE ports and 2*10/100/1000M RJ45 ports for flexible networking and meets the networking requirements of various scenarios.
Intelligent PoE power supply
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ 16*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable, easy to use
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ Low power consumption, galvanized steel casing, no fan.

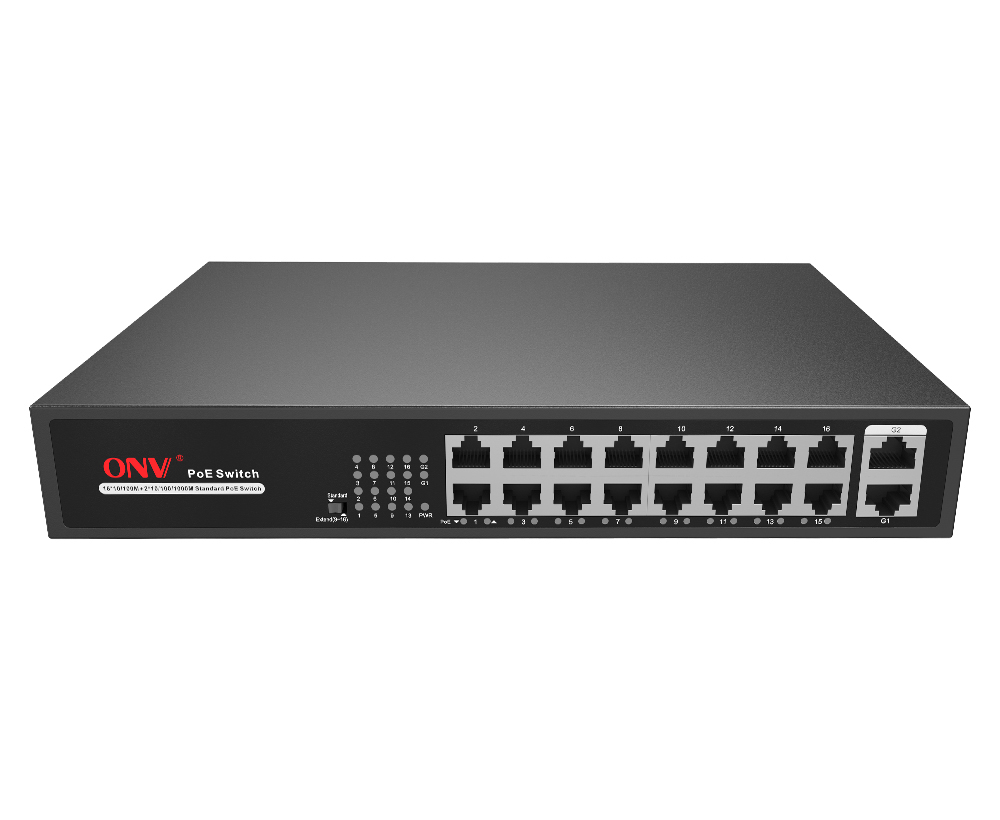

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

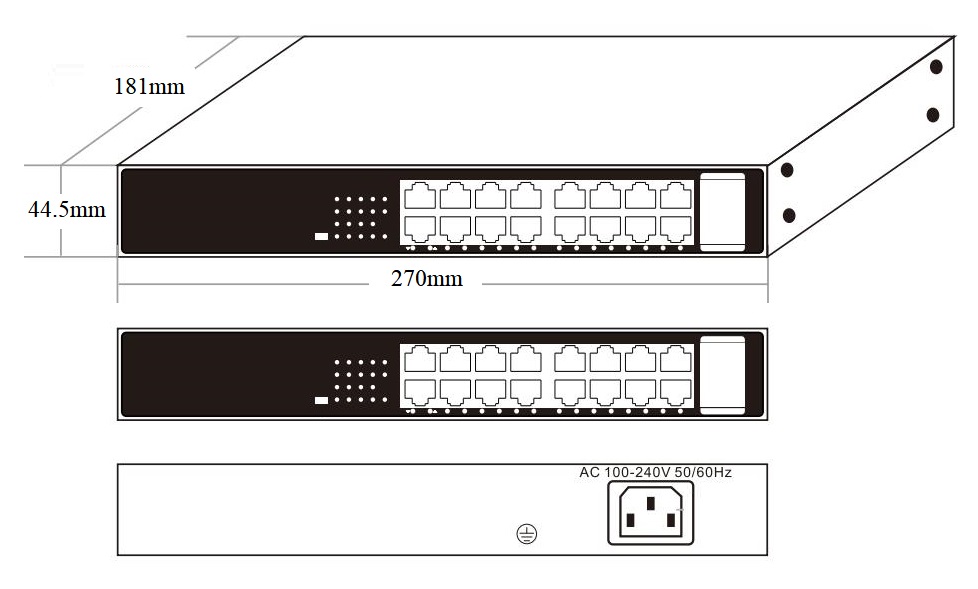

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
|
ONV-H1016PL |
Unmanaged PoE switch with 16*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-16 can support IEEE802.3af/at PoE Standard. Adjust function switch, port 9-16 can support 10M/250m long distance transmission. Built-in 250W power supply. |
|
ONV-H1024PL |
Unmanaged PoE switch with 24*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-24 can support IEEE802.3af/at PoE Standard. Adjust function switch, port 17-24 can support 10M/250m long distance transmission. Built-in 250W power supply. |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
18-port gigabit uplink PoE switch |
1 |
SET |
|
|
AC Power Cable |
1 |
PC |
|
|
Mounting Kits |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-H1016PL |
ONV-H1024PL |
|
Interface Characteristics |
||
|
Fixed Port |
16*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
24*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
|
Ethernet Port |
Port 1-16/Port 1-24 support 10/100Base-TX and port 17-18/ 25-26 support 10/100/1000Base-T auto-detection, full/half-duplex MDI/MDI-X auto-sensing |
|
|
Functional Switch
|
When functional switch opening, Port 9-16/17-24 can support 10M/250m long distance transmission. |
|
|
Note: when the switch state changes, it must be restarted before the PoE switch function can take effect |
||
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤250 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
|
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
|
Switching Capacity |
14.8Gbps (Non-blocking) |
|
|
Forwarding Rate@64byte |
5.36Mpps |
6.55Mpps |
|
MAC |
16K |
|
|
Buffer Memory |
4M |
|
|
Jumbo Frame |
9.6K |
|
|
LED Indicator |
Power: PWR (Green), Network: Link(Green), PoE: PoE (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 1 to 16 |
Port 1 to 24 |
|
Power Supply Pin |
1/2(+) 3/6(-) 2-pairs power supply |
|
|
Max Power Per Port |
30W, IEEE802.3af/at |
|
|
Total PWR / Input Voltage |
250W (AC100-240V) |
|
|
Power Consumption |
Standby<15W, Full load <240W |
Standby <20W, Full load <250W |
|
Power Supply |

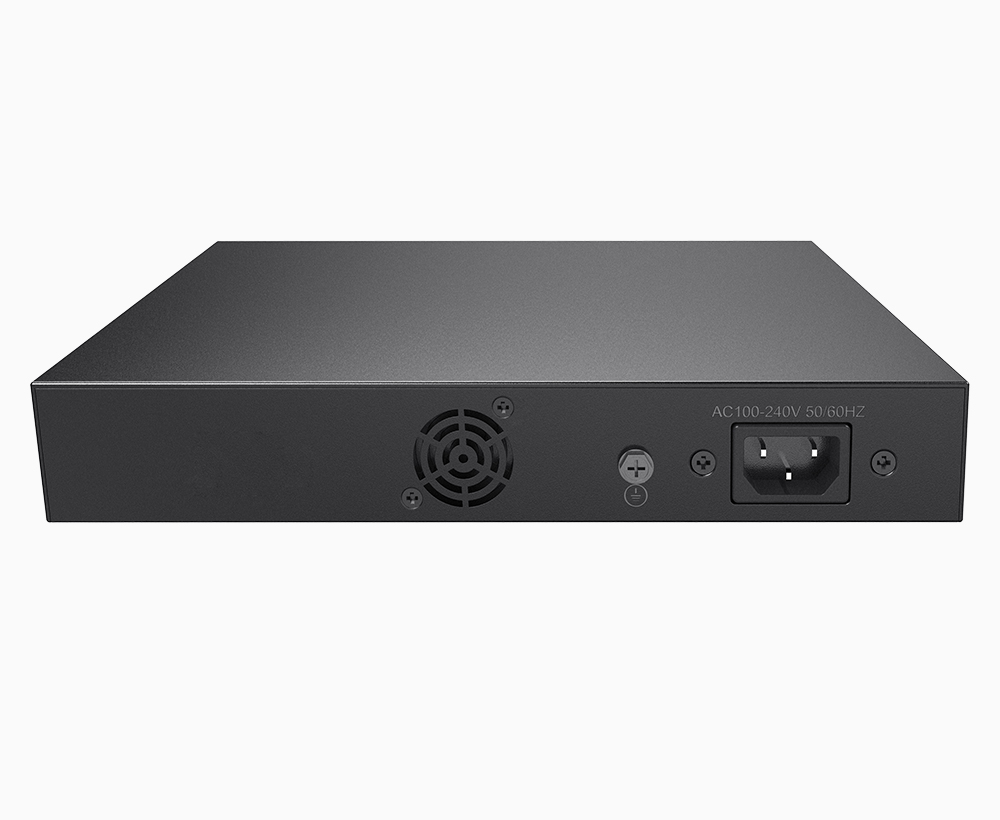

Built-in power supply, AC100~240V 50-60Hz 5.0A |
|
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
270*181*44.5mm |
330*204*44mm |
|
Net /Gross Weight |
<1.7kg / <2.2kg |
<2.3kg / <3kg |
|
Installation |
Desktop, Wall-mounted |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Port lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
