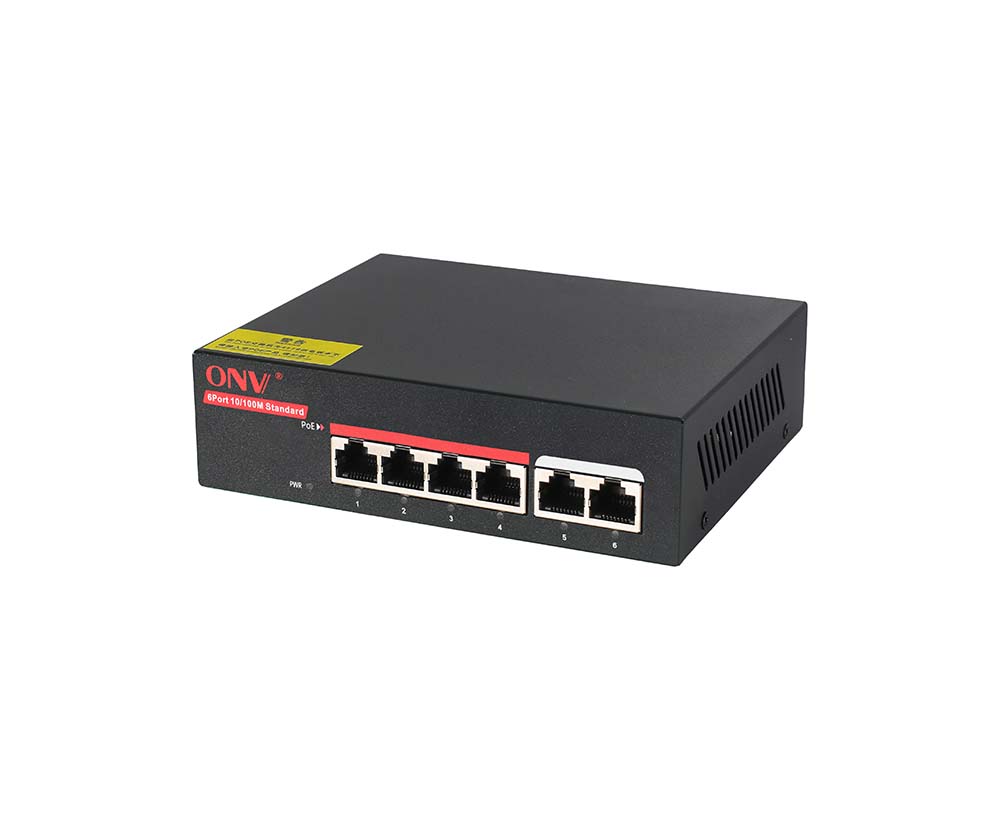

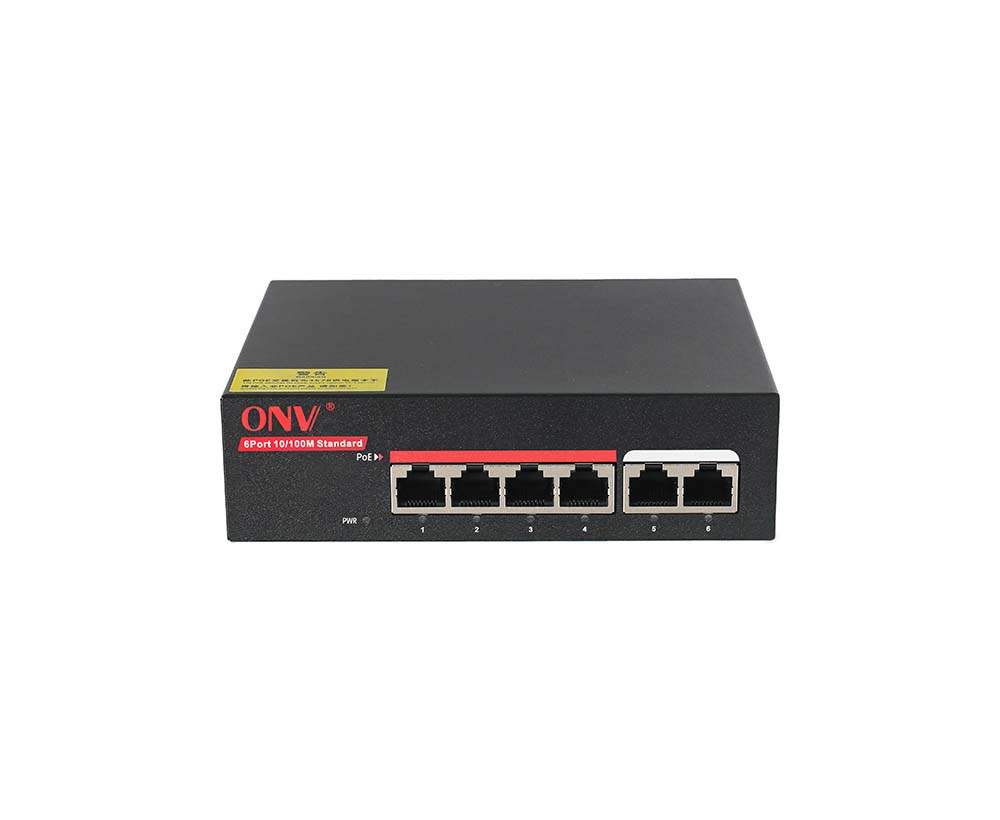

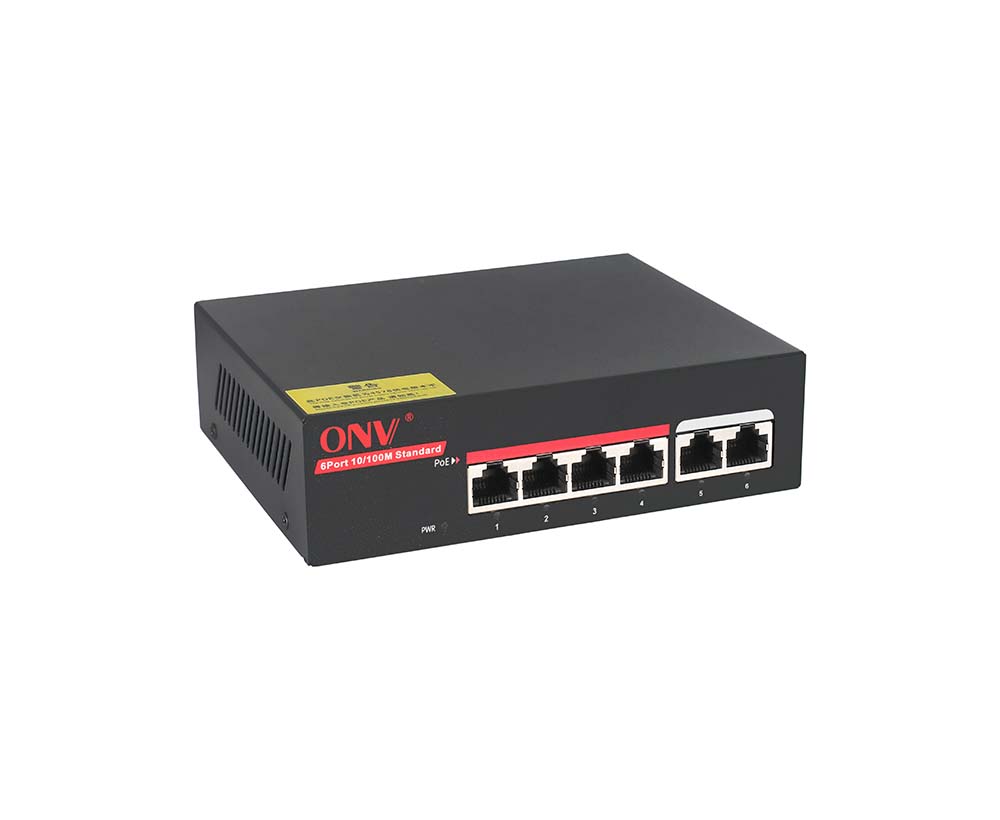

Commutateur non standard de 10/100M 6-port 24V PoE

Modèle： ONV-H2064P

Commutateur non géré de PoE avec les ports RJ45 de 4*10/100M et les ports de la liaison montante RJ45 de 2*10/100M. Le port 1-4 peut soutenir la sortie de DC24V PoE. Alimentation 60W intégrée.

Je veux faire une enquête

Aperçu
Spécification technique

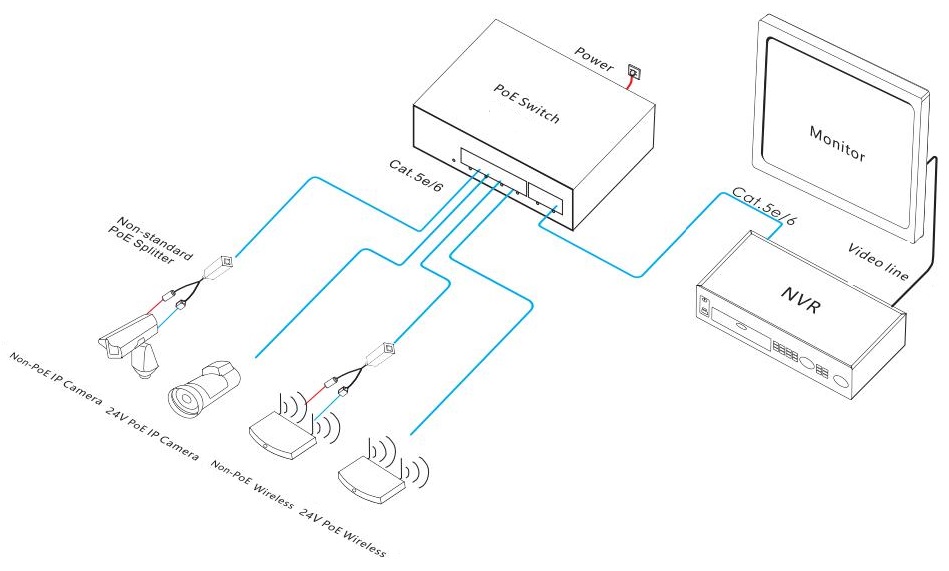

Application
Documents
Produits connexes

OVERVIEW

The ONV-H2064P is a 10/100M non-standard PoE switch independently developed by ONV. It has 6*10/100M RJ45 ports. Port 1-4 can support 24V non-standard PoE power supply and the single-port PoE power up to 24W. As a non-standard PoE power supply device, it must be connected to the corresponding non-standard electrical equipment (such as wireless bridge), or the corresponding non-standard PoE splitter to convert, and then achieve the PoE power supply. It can supply power to various adaptable terminals through network cables to meet the demand for a high-density PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks. Unmanaged mode, plug and play, no configuration, easy to use.

FEATURE

10/100M access

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

◇ Provides 6*10/100M RJ45 ports, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.

Smart PoE power supply

◇ 4*10/100Base-TX RJ45 ports support 24V PoE power supply, meeting the power supply needs of security monitoring, wireless coverage, and other scenarios.

◇ Quickly implement PoE network cable power supply through the switch to directly connect non-standard electrical equipment or the switch and non-standard PoE splitter cable.

Stable and reliable

◇ CCC, CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

◇ The user-friendly panel can show the device status through the LED indicator of PWR and L/A.

◇ Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output.

◇ Low power consumption, galvanized steel housing, and excellent heat dissipation to ensure the stable operation of the switch.

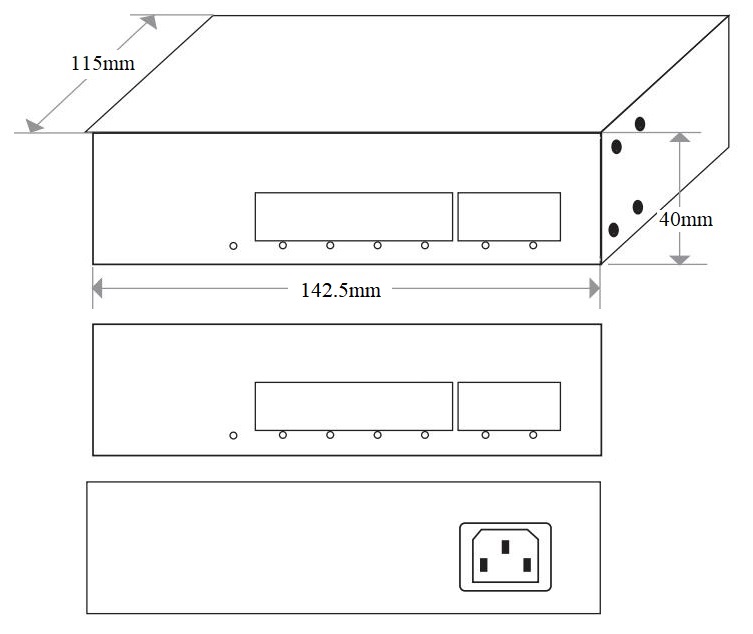

DIMENSION

ORDERING INFORMATION

Model	Description	Built-in Power Supply
ONV-H2064P	Unmanaged PoE switch with 410/100M RJ45 ports and 210/100M uplink RJ45 ports. Port 1-4 can support DC24V PoE output. Built-in power supply.	60W
Note: The mounting ears are not included and need to be purchased.

PACKING LIST

Packing List	Content	Qty	Unit
	6-port 10/100M non-standard PoE switch	1	Set
	AC Power Cable	1	PC
	User Guide	1	PC
	Warranty Card and Certificate of Conformity	1	PC

TECHNICAL SPECIFICATION

Model	ONV-H2064P
Interface Characteristics
Fixed Port	210/100Base-TX uplink RJ45 Ports (Data) 410/100Base-TX 24V PoE ports (Data /Power)
Ethernet Port	Port 1- 6 can support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-TX: Cat5 or later UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters)
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	1.2Gbps (non-blocking)
Forwarding Rate@64byte	0.89Mpps
MAC	1K
Buffer Memory	768K
Jumbo Frame	1536byte
LED Indicator	Power: PWR (Green), Network: L/A (Green)
PoE& Power Supply
PoE Port	Port 1-4 can support 24V PoE power
Power Supply Pin	4/5(+), 7/8 (-)
Max Single Port/ Average Power	24W/15W
Total PWR/ Input Voltage	60W /(AC100-240V)
Power Consumption	Standby<5W, Full load<60W
Power Supply	Built-in power supply, AC100~240V, 50-60Hz, 1.0A
Physical Parameter
Operation Temp/ Humidity	-20~+55°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+75°C, 5%~95% RH Non condensing
Dimension (LWH)	14211540mm
Net /Gross Weight	0.55kg/ 0.8kg
Installation	Desktop, Wall mount
Certification& Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty	1 year, lifelong maintenance.
