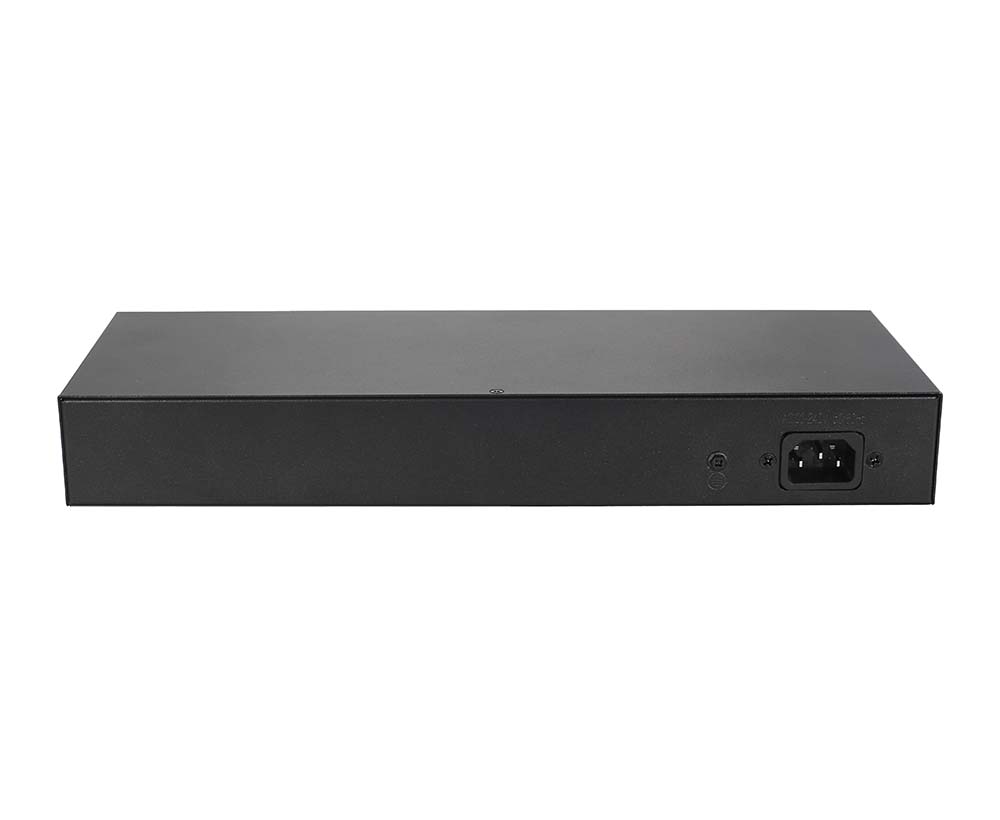

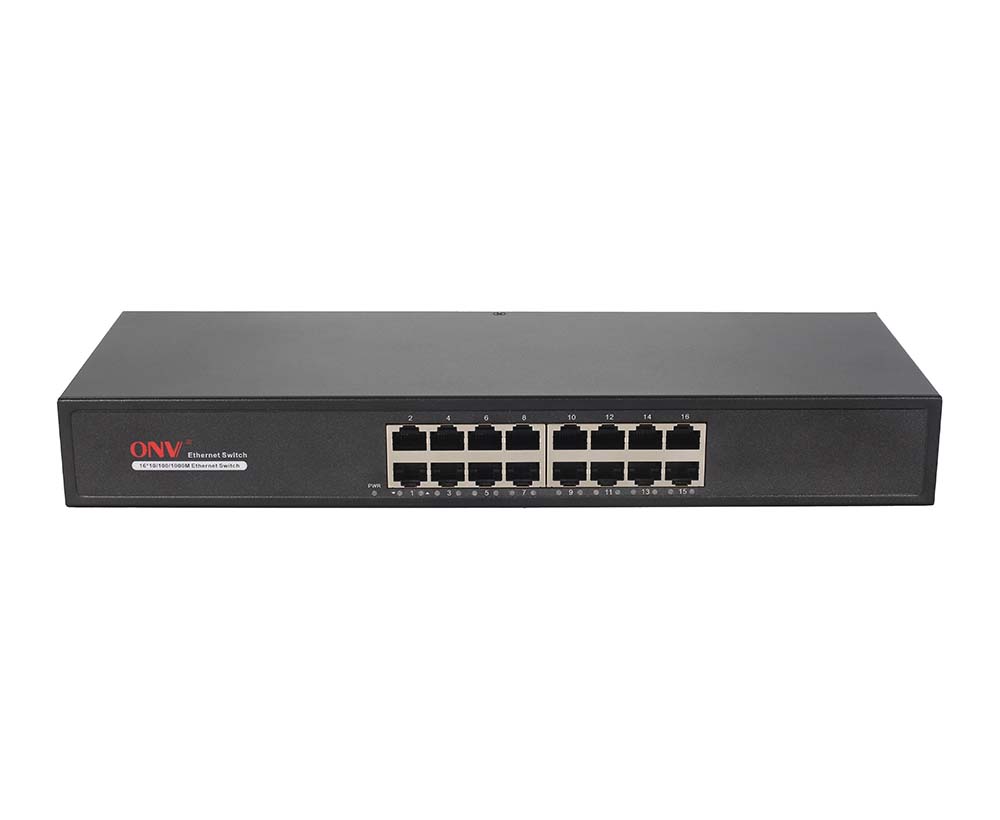

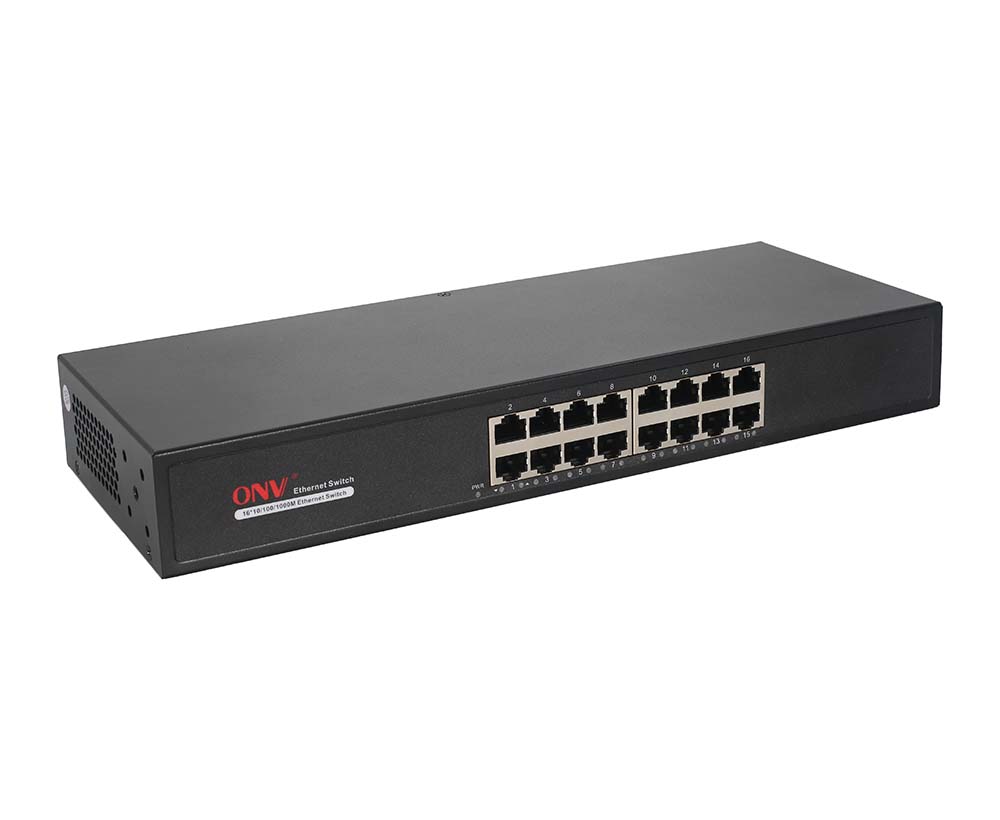

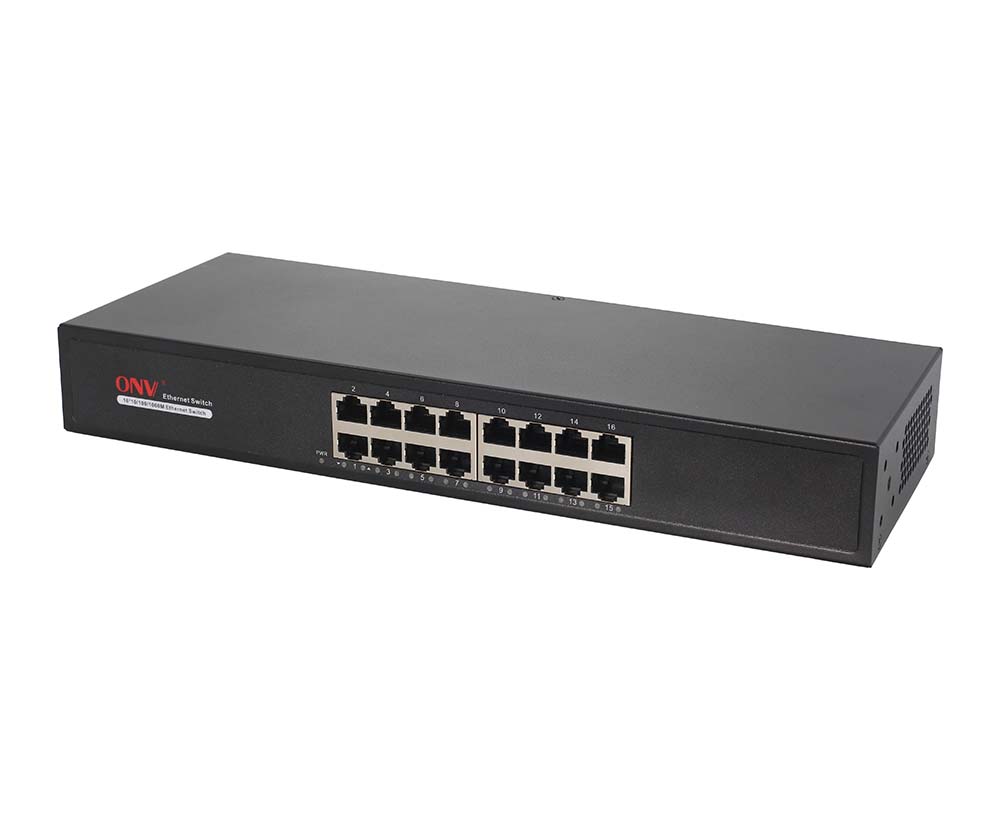

The ONV-H3016A is a Gigabit Ethernet switch independently developed by ONV. It has 16*10/100/1000M adaptive RJ45 ports, and a non-blocking full-duplex transmission rate to achieve convenient network connection and expansion. Each port can support full-line speed forwarding, and 4.1M large-capacity cache ensures timely transmission of large files and stable video streaming, 7*24 hours without disconnection, effectively solving video freezes and picture loss in high-definition monitoring environments. It is suitable for hotels, banks, campuses, factory dormitories, and small and medium-sized enterprises. Plug and play, no configuration and simple and convenient use is the choice to improve network performance.
FEATURE
Gigabit access, full-line speed forwarding
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Support Gigabit adaptive RJ45 port to meet the networking needs of various scenarios.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ Self-developed power supply, high redundancy, providing a long-term and stable power output.
◇ The user-friendly panel can show the device status through the LED indicator of PWR and Link.
◇ Low power consumption, metal housing, and excellent heat dissipation to ensure the stable operation of the switch.

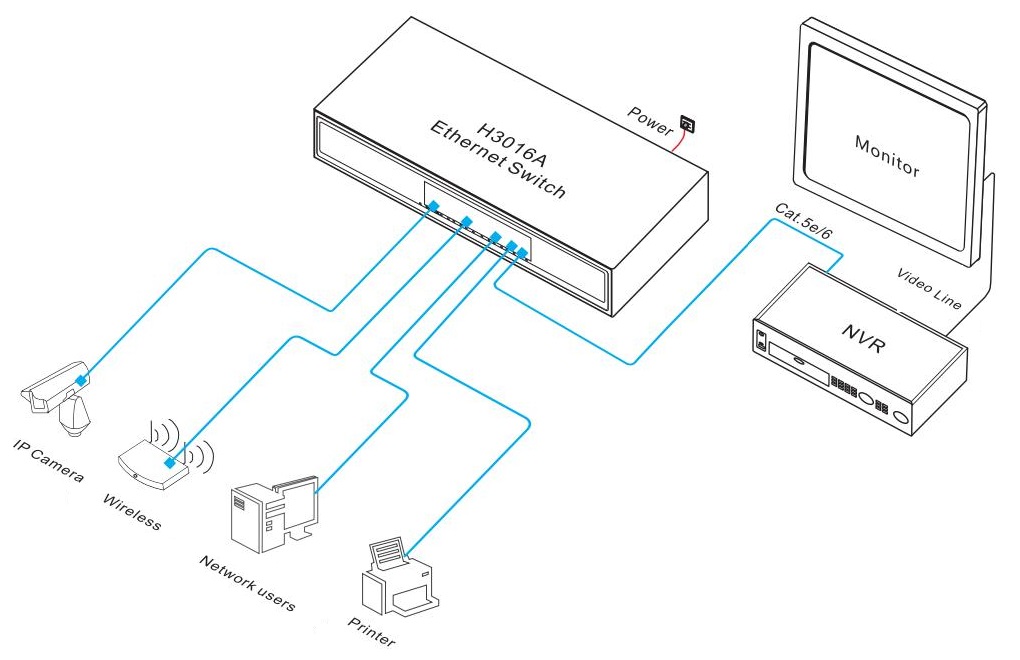

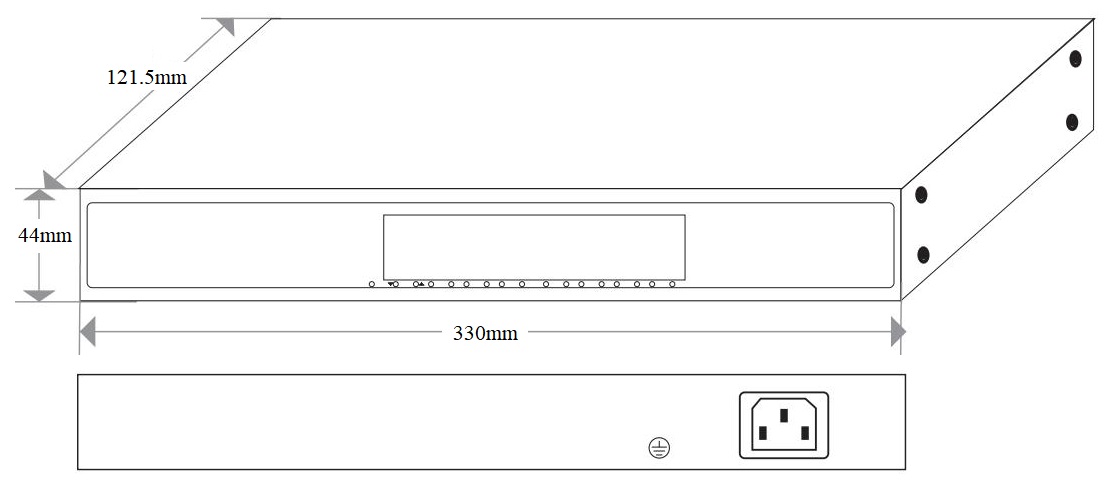

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV-H3016A |
Unmanaged Ethernet switch with 16*10/100/1000M RJ45 ports. It built-in power supply and 1U/19” cabinet installation. |
30W |
|
ONV-H3024A |
Unmanaged Ethernet switch with 24*10/100/1000M RJ45 ports. It built-in power supply and 1U/19” cabinet installation. |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
16-port Gigabit Ethernet switch |
1 |
Set |
|
|
AC Power Cable |
1 |
PC |
|
|
Hanging Ear |
1 |
Pair |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
|
Model |
ONV-H3016A |
ONV-H3024A |
|
Interface Characteristics |
||
|
Fixed Port |
16*10/100/1000Base-T RJ45 ports (Data) |
24*10/100/1000Base-T RJ45 ports (Data) |
|
Ethernet Port |
Port 1-16/1-24 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x |
|
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
|
Switching Capacity |
56Gbps (non-blocking) |
|
|
Forwarding Rate@64byte |
23.81Mpps |
35.71Mpps |
|
MAC |
8K |
|
|
Buffer Memory |
4.1M |
|
|
LED Indicator |
Power: PWR (Green), Network: Link/ Act (Green) |
|
|
Power Supply |
||
|
Total PWR/ Input Voltage |
30W /(AC100-240V) |
|
|
Power Consumption |
Standby<10W, Full Load<18W |
|
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz, 0.56A |
|
|
Physical Parameter |
||
|
Operation Temp/ Humidity |
-20~+55°C, 5%~90% RH non condensing |
|
|
Storage Temp/ Humidity |
-40~+75°C, 5%~95% RH non condensing |
|
|
Dimension (L*W*H) |
330*121.5*44mm |
|
|
Net /Gross Weight |
1.0kg /1.4kg |
1.1kg /1.5kg |
|
Installation |
Desktop, Wall mount, 1U/19 inch |
|
|
Certification& Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
